Lowriser 2 step lift

A mid-rise step lift ideal for buildings needing access over a higher change of level or alternate entrance configurations. Suitable for those with impaired mobility, including wheelchair users, the elderly, and parents with pushchairs.

Max travel: 2m

Load capacity: 300kg (wheelchair & occupant)

Features & benefits

usp

Subtle design

Striking the balance between affordability and design. With a wide range of finishes and anti-slip floor coating, it’s the perfect solution for short vertical travels.

usp

No ramp required

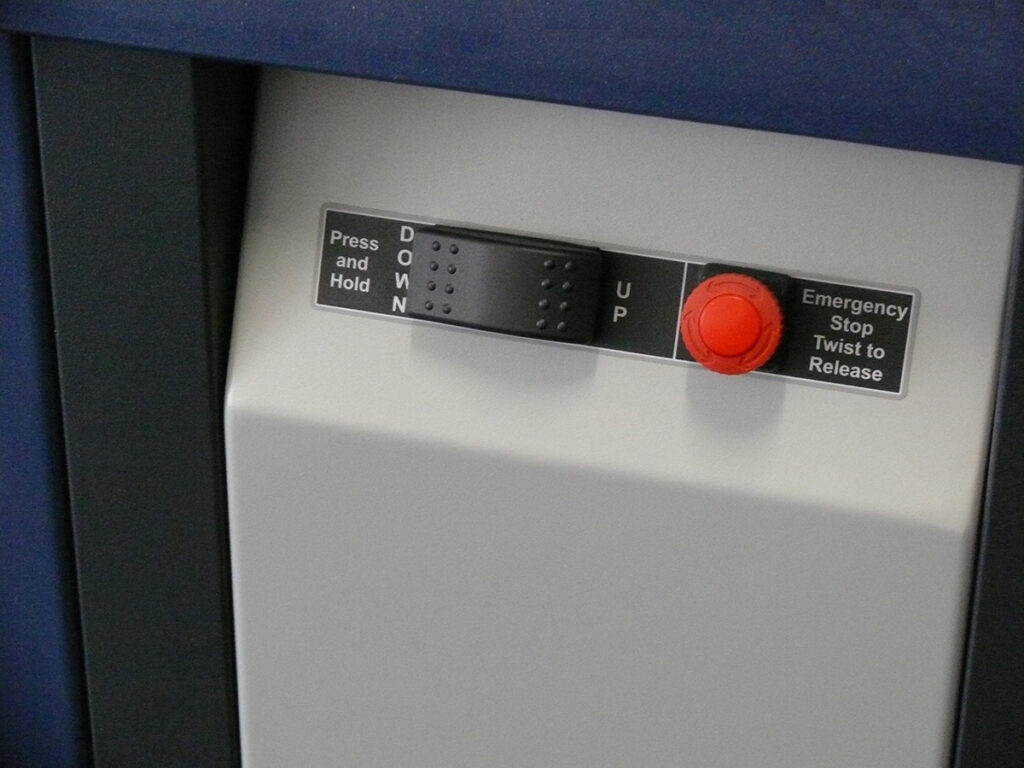

With full safety features, emergency lowering and integral ramps plus easy-to-use controls Lowrisers are perfect for public buildings.

usp

Corrosion proof

Our Lowrisers can cope outdoors with the difficult weather conditions this might entail – so we offer a 5-year anti-corrosion warranty as standard.

Technical specifications

Predominantly moving: People
Speed (m/s): 0.08m/s
Travel orientation: Vertical
Capacity: 300kg (wheelchair & occupant)
No of people/usage: Wheelchair user and attendant
Max no of stops: 1
Entrance configuration: Through, adjacent
Drive type: Hydraulic drive with remote control cabinet
Operation: Constant pressure
Pit depth: n/a
Ramp option? (Y/N): Yes - integral folding ramp
Headroom/clearance: n/a
Door type: Half-height gate
Shaft: Open structure
Power requirements: Single-phase
Warranty: 1-year standard warranty, including servicing and 24/7 callout cover, 5-year anti-corrosion warranty
