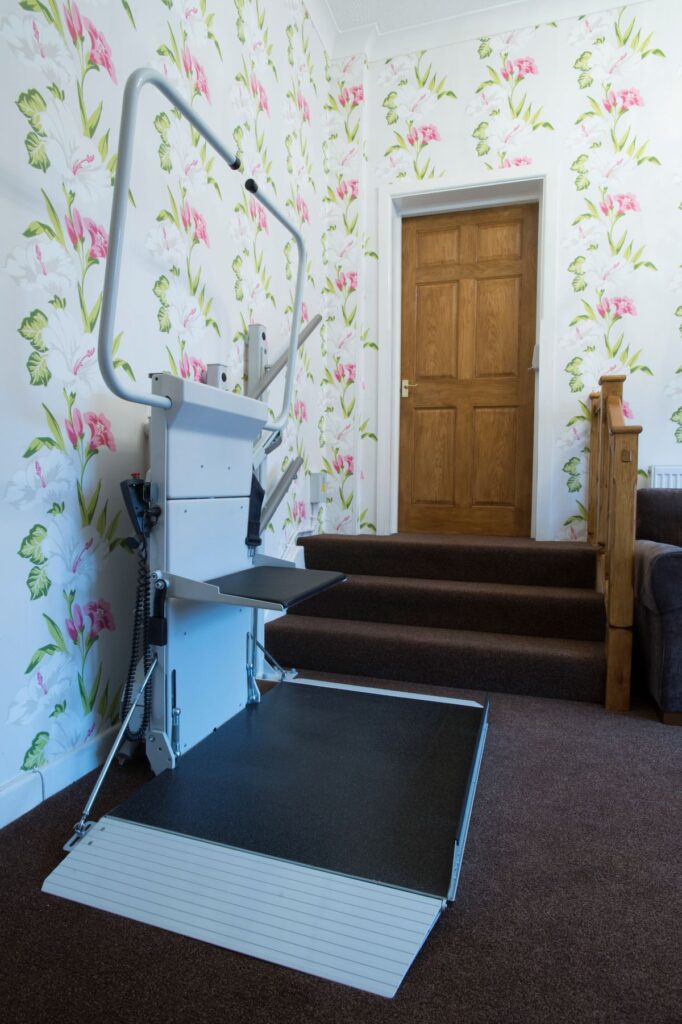

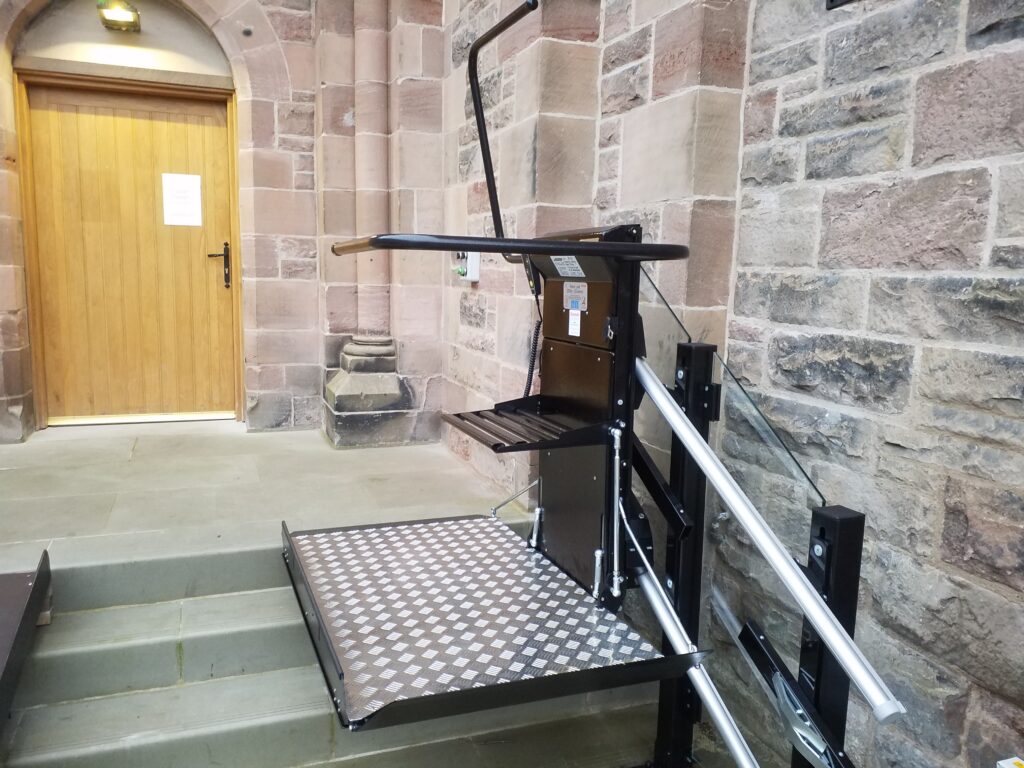

Stairiser SR platform lift

Provides independent and safe access to a wheelchair/seated user over a single flight of straight stairs.

Max travel: 12m

Load capacity: 250kg (wheelchair & occupant)

Features & benefits

usp

Flexible & slim design

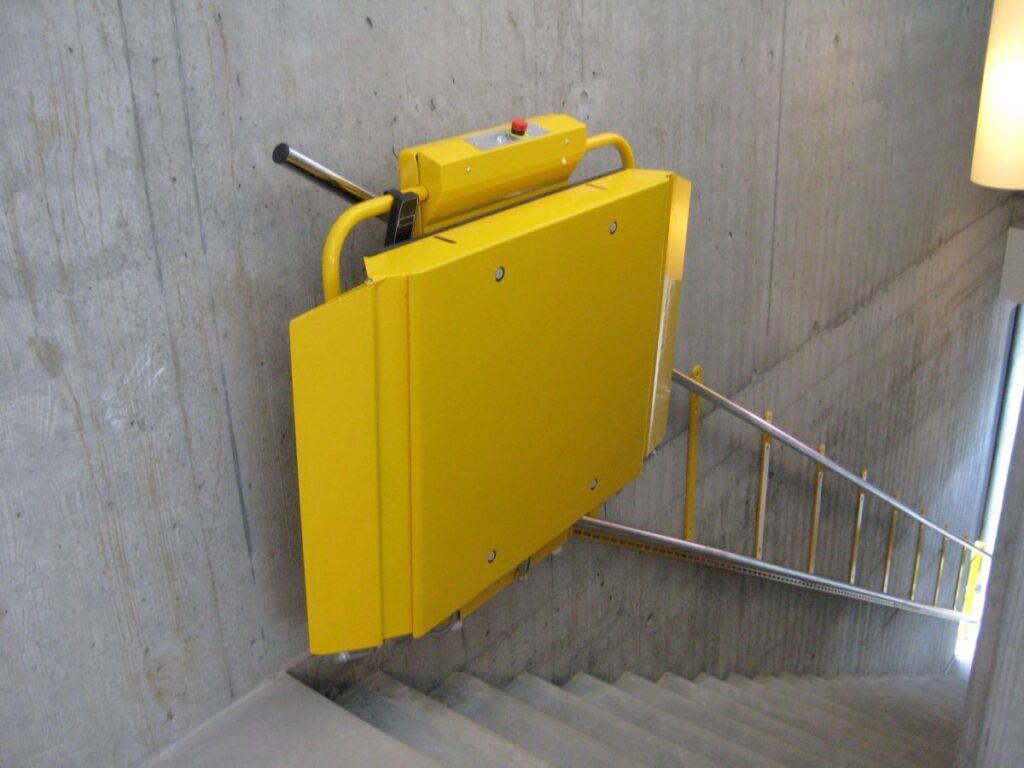

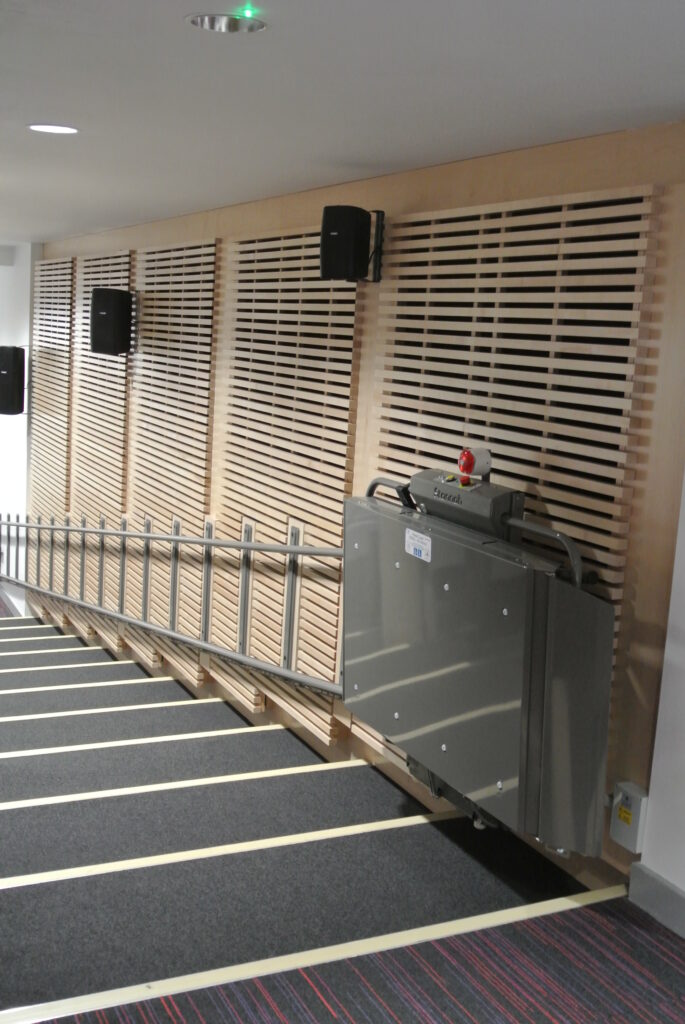

When not in use, the folding platform leaves the stairway free for others.

A choice of fixing methods, parking options and drive layouts make it ideal for restrictive landings and other building limitations.

usp

Easy to operate

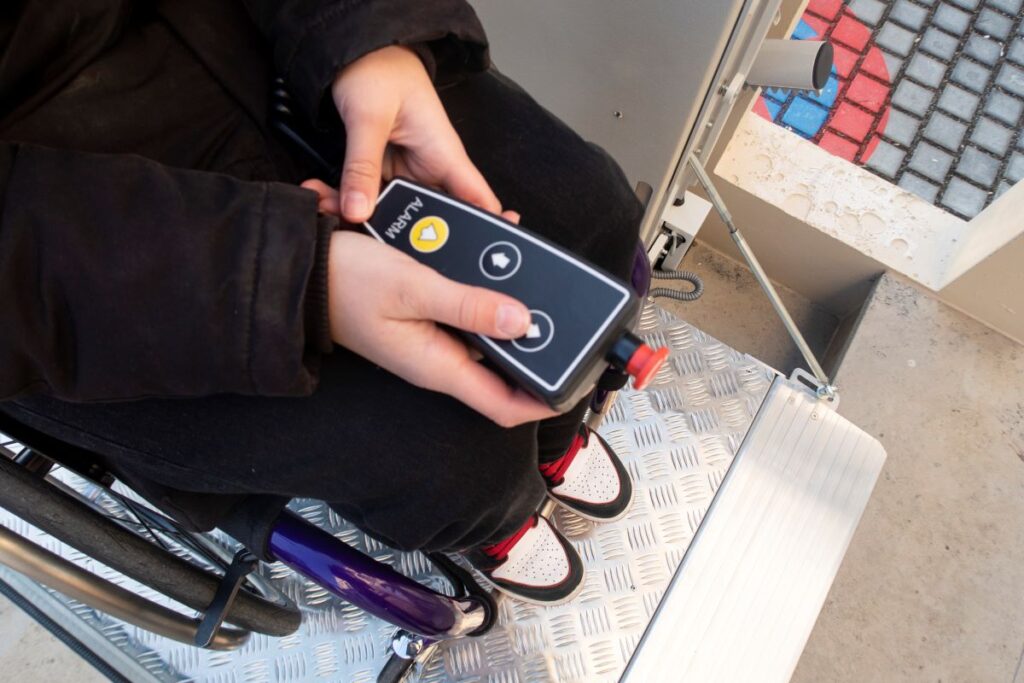

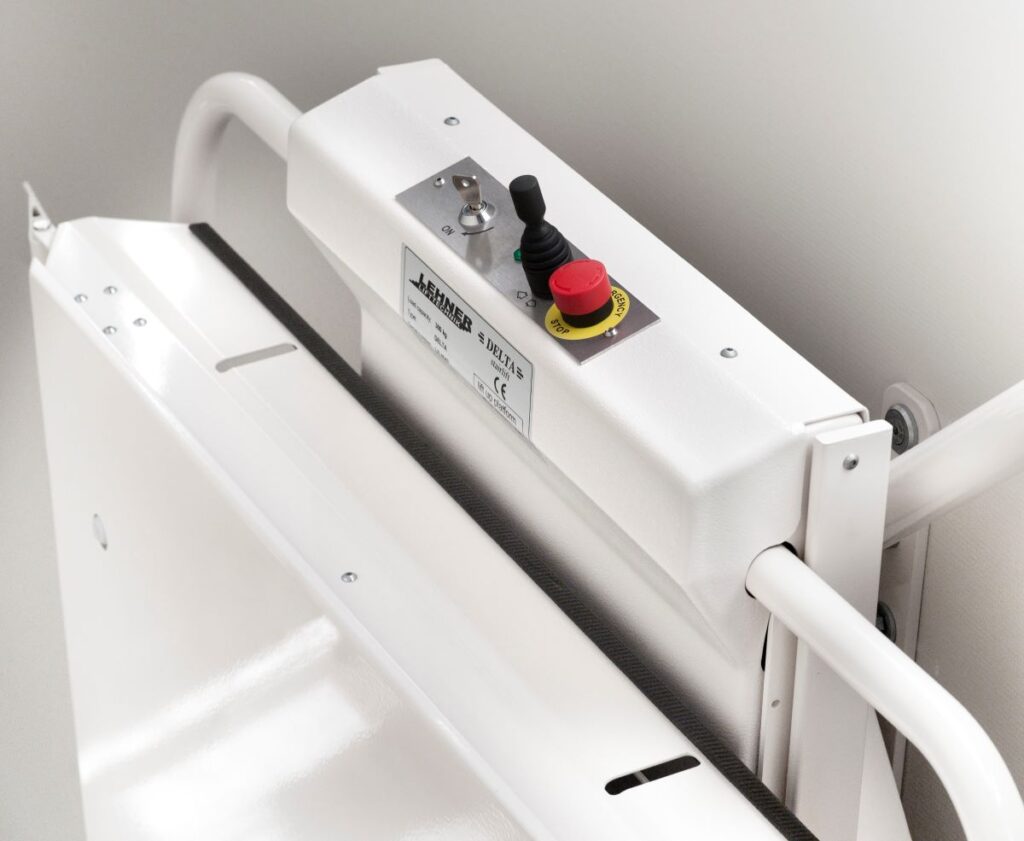

Easy-to-use constant pressure controls allow wheelchair users or others to operate the platform stair lift independently.

Automatic landing stops, and intuitive controls ensure that the user can safely stop the lift when necessary.

usp

Safety & standards

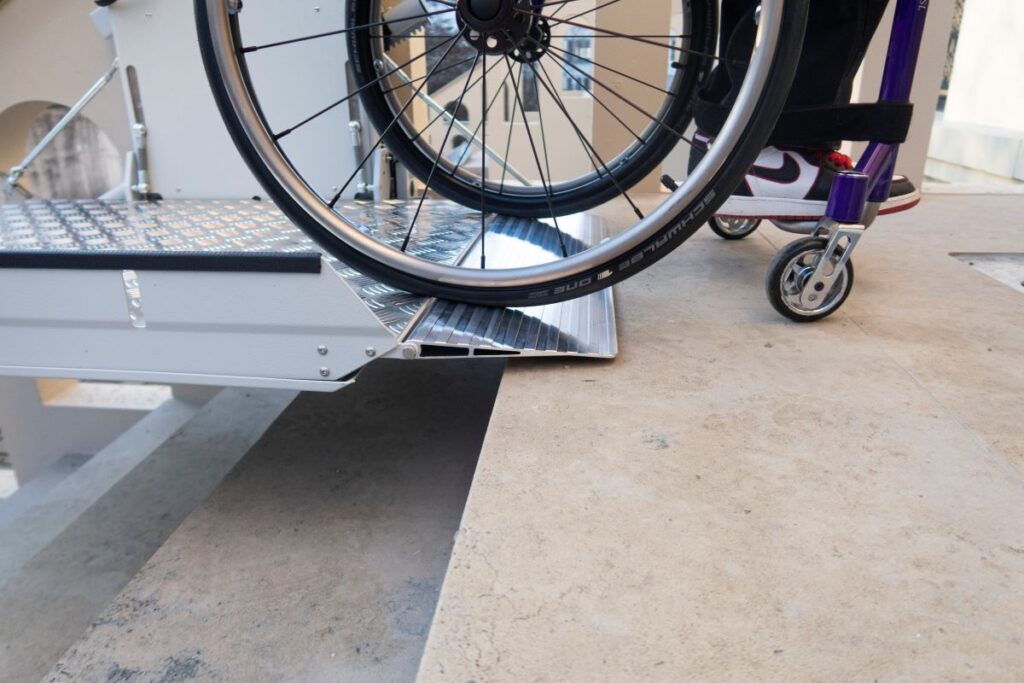

Built-in safety features ensure lift operation can only start when the barrier arms and ramps are securely in place.

The product is supplied in conformance with the machinery directive and lift installation requirements for complete peace of mind.

Technical specifications

Predominantly moving: People
Speed (m/s): 0.1 m/s
Travel orientation: Inclined
Inclination: 15° - 45°.
Capacity: 250kg (wheelchair & occupant)
No of people/usage: 1 person (either wheelchair or seated)
Max no of stops: 4
Entrance configuration: Through, adjacent
Drive type: Battery powered positive rack and pinion drive.
Operation: Automatic operation
Pit depth: 0mm - integral ramp included
Headroom/clearance: n/a
Shaft: Floor/Wall mounted/Mix
Platform depth when folded: 300mm (wall mounted), 382mm (stanchion mounted).
Minimum stair width: 895mm - 1045mm (wall mounted)
Power requirements: Single-phase
Warranty: 1-year standard warranty, including servicing and 24/7 callout cover
