Can a goods lift be used for people?

Yes, but only if it’s designed as a goods attendant lift, which can accommodate up to two attendants. These lifts have additional controls and safety measures. If transporting passengers is the primary use, then a passenger or platform lift should be considered.

Can a goods lift be installed outside?

A fully pre-built outdoor shaft must be installed to protect an external goods lift from the elements.

What is the size of a goods lift?

Our most popular goods lift dimension for the UK is a 1600mm wide x 1750mm deep car size, loading capacity between 1000-1500 kg. This size will fit a large pallet, Euro bin, or multiple roll-cages.

How much does a goods lift cost?

A goods lift price will vary depending on the travel, number of stops, configuration, goods lift size, and additional options and finishes. Please contact us for a budget price.

Do you have used goods lifts for sale?

We don’t sell second-hand lifts. These lifts are well-used, so we’d always recommend choosing a new product as it will be energy efficient, have new parts, and include warranty and servicing.

Can a passenger lift be used for goods?

If you’re looking for a specialised dual-purpose lift designed to carry both passengers and goods, that is resistant to knocks, sometimes referred to as a goods-passenger lift then you should consider installing a heavy-duty passenger lift.

Through car Goodsmaster Plus at a large hotel.

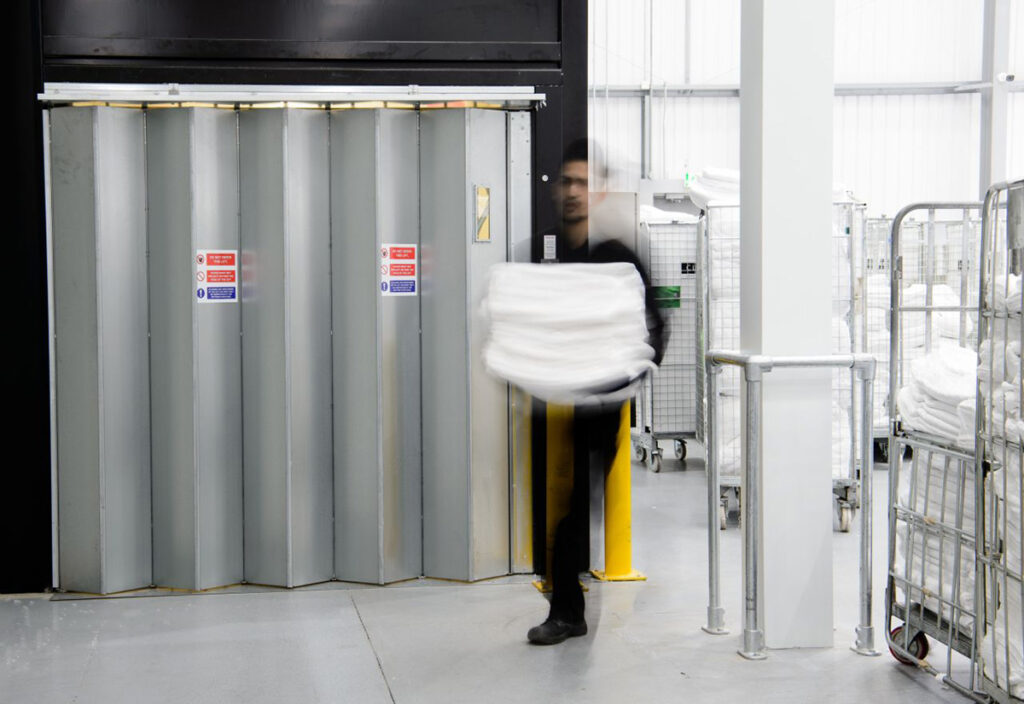

Concertina door for easy access to a Goodsmaster goods lift

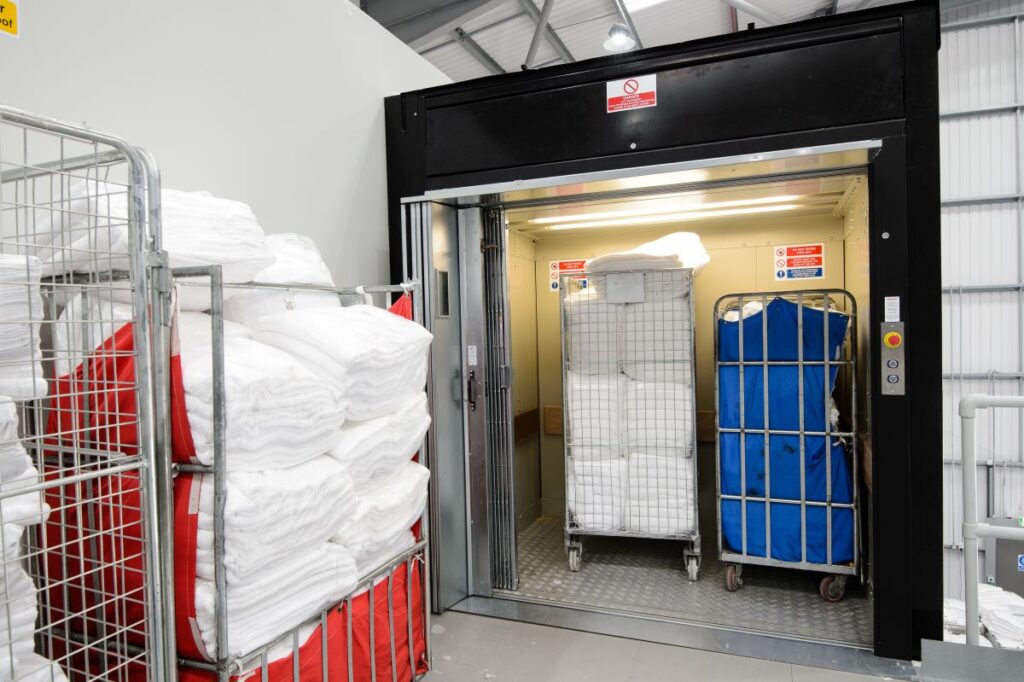

Roll cages inside 1000 kg Stannah Goodsmaster, CLEAN laundry in Slough

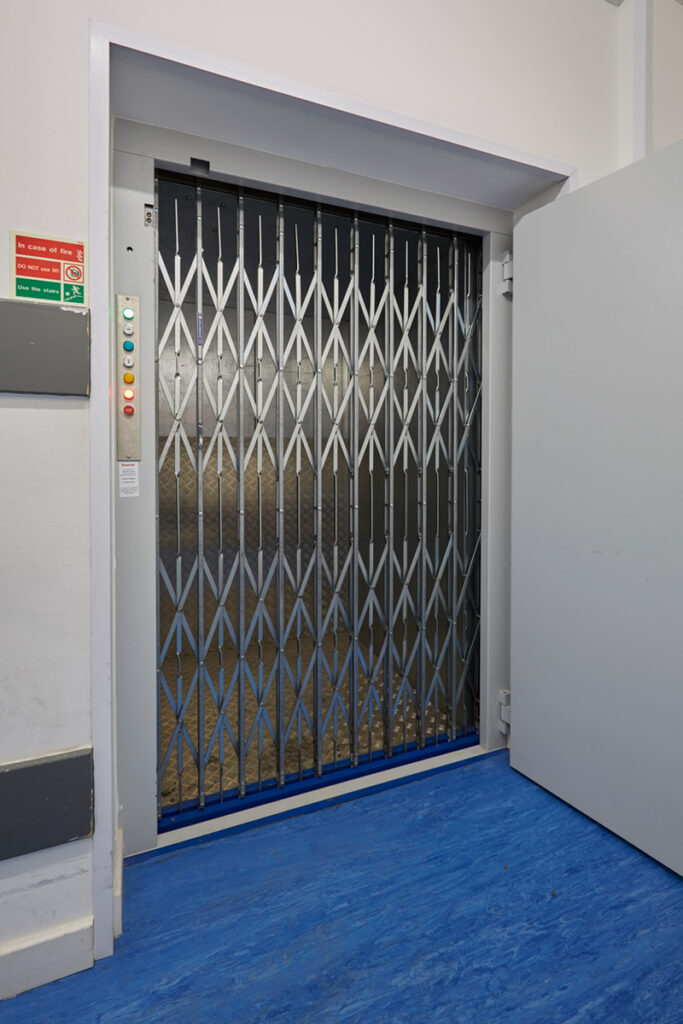

Collapsible stainless steel gates on a bespoke Goodsmaster in a retail environment.

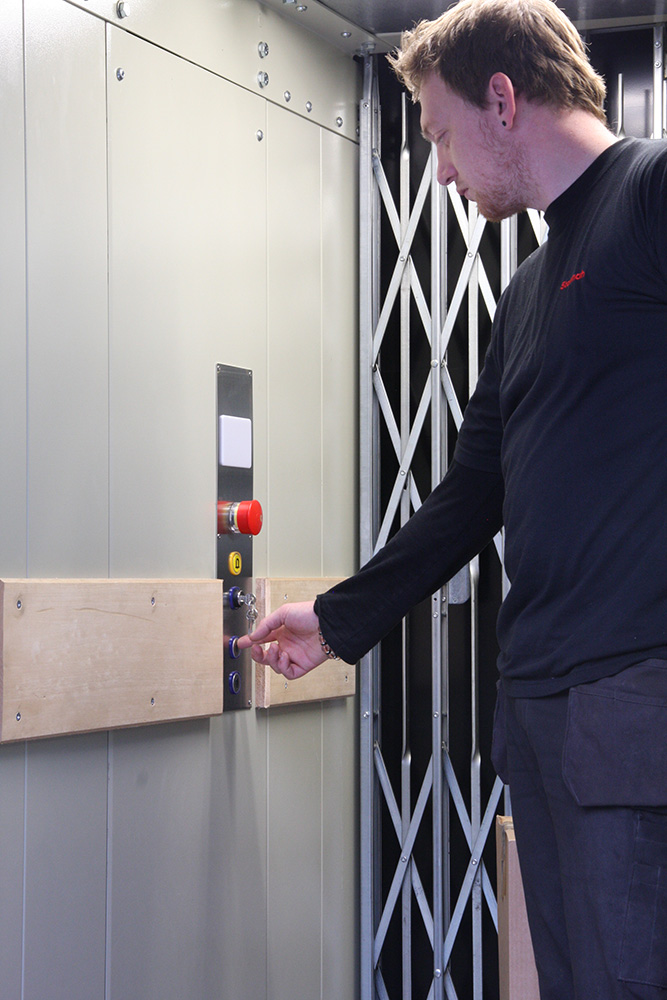

Lift car controls in goods attendant model

Person shutting gate on a 1000 kg Stannah Goodsmaster

A person standing in a Goodsmaster CD goods lift, Co-op, Wimbledon.

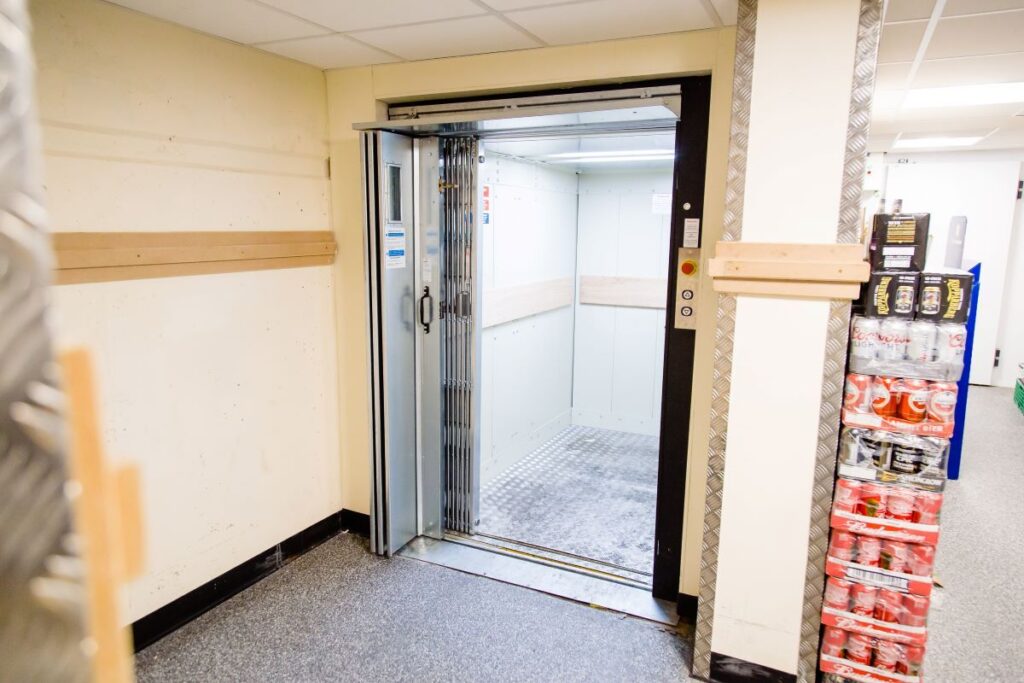

Goodsmaster CD goods lift, Co-op, Wimbledon.

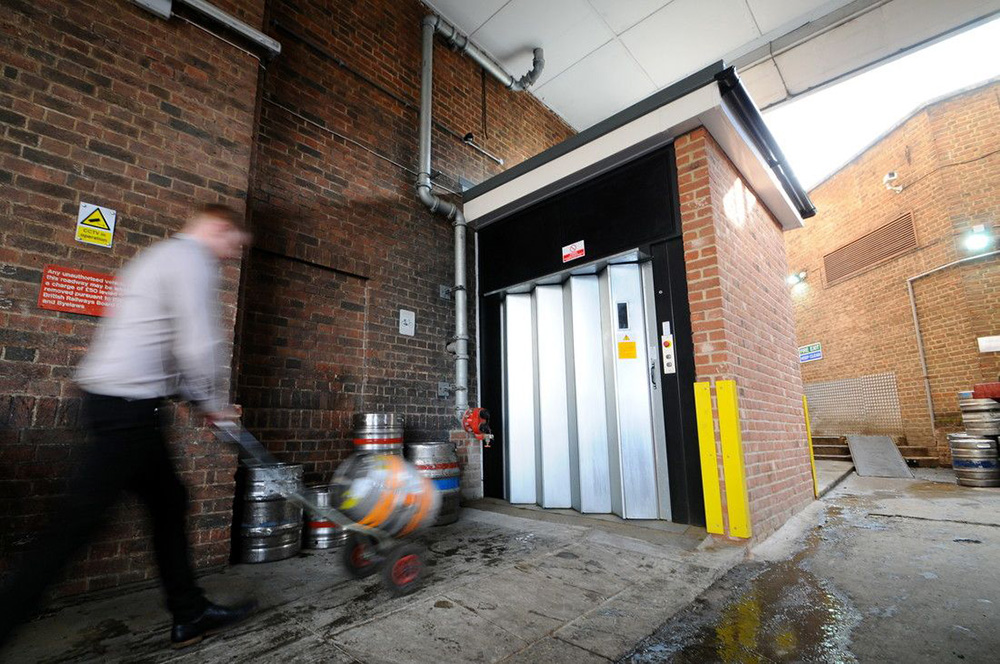

Goodsmaster CD at Wetherspoons in Leeds city centre.

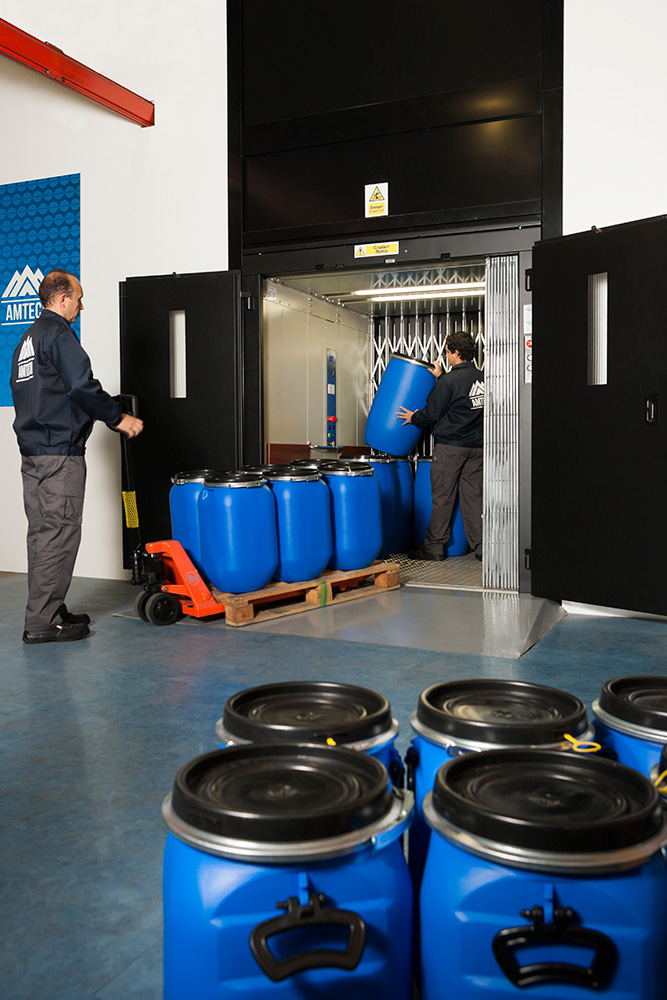

Loading barrels in a black-finished Goodsmaster.

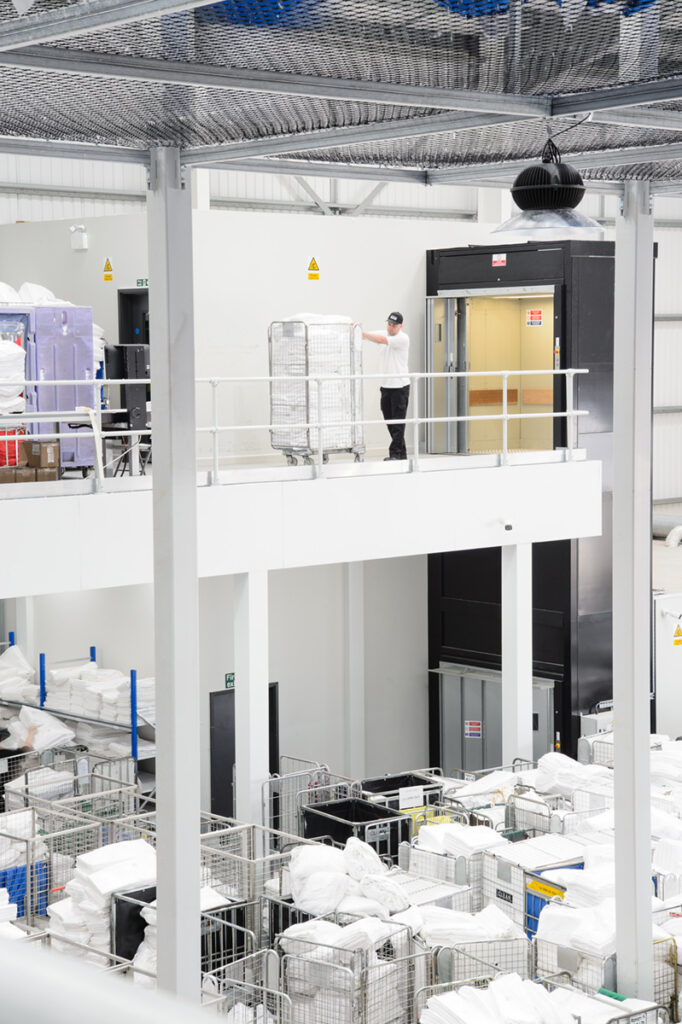

Goodsmaster CD structure, serving a mezzanine floor.

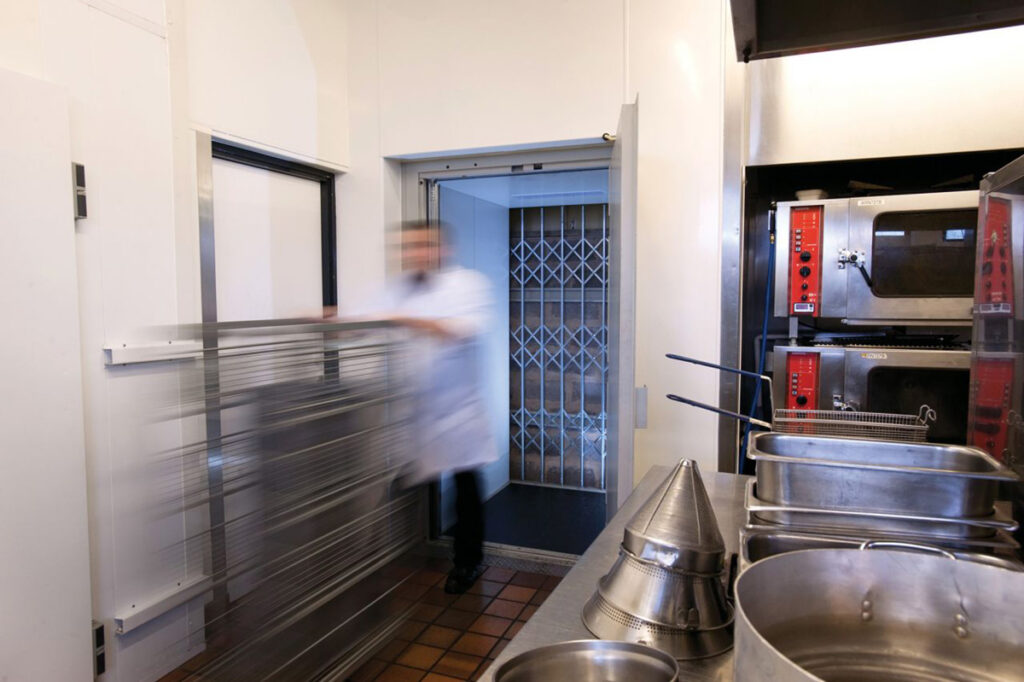

A Goodsmaster serving the kitchens at the LG Arena.

Goodsmaster CD goods lift

Britain’s leading heavy-duty goods lift for retailers, warehouses, and industrial sites designed for goods, large bins, and more. With the option for up to two attendants to accompany loads.

Max travel: 1m

Load capacity: 500-2000kg

Features & benefits

Reduces manual handling hazards

Installing a Goodmaster helps reduce the risk of injury associated with manual handling, making the movement of goods faster and safer.

Flexible design

With a range of modular platform sizes and loading capacities, it’s easy to find one that fits with your goods lift plans.

Reliable performance

With energy-efficient chain-drive technology and a robust build, our goods lifts are designed to be hard-wearing. They are backed up with regular service visits, and 24/7 support to ensure long life.

Technical specifications

Predominantly moving: Goods

Max travel (m): 9

Speed (m/s): 0.15m/s

Travel orientation: Vertical

Capacity: 500-2000kg

No of people/usage: Floor level, option for up to 2 attendants

Max no of stops: 4

Entrance configuration: Single, through

Drive type: Traction lift with chain drive and VVVF operation for improved levelling.

Operation: Automatic push button control with call and send and a stop switch at each landing. Constant pressure car controls (attendent option)

Pit depth: From 90mm

Ramp option? (Y/N): Yes

Headroom/clearance: Internal car height +700mm (+750mm on 1500kg & 2000kg models).

Door type: Concertina gates / hinged doors at landings, collapsible gate on lift car

Shaft: Structure-supported

Power requirements: 3-phase supply

Warranty: 1-year standard warranty, including servicing and 24/7 callout cover

Technical Downloads

- 500-2000kg Goodsmaster CD/CD Plus Brochure (PDF)
- Goodsmaster CD & CD Plus User Handbook (PDF)
- 500-2000kg Goodsmaster CD/CD Plus Datasheet (PDF)
- Goodsmaster CD & CD Plus NBS Spec (PDF)
- 500-2000kg Goodsmaster CD/CD Plus CAD Blocks (DWG)
- Goodsmaster CD & CD Plus (Complete Technical Data) ZIP

Please note: Some of our technical content requires registration to download, but you will only have to register once.

What is a goods lift?

A commercial goods lift, also known as a goods elevator, is a big floor-level lift designed to move heavy loads safely over different floor levels. Some models can take attendants for added convenience. They are commonly used in warehouse, factory, and retail settings to aid back-of-house operations.
