Midilift CL cabin platform lift

A cabin platform lift with automatic controls and partial lift car for those looking for a little more from a vertical platform lift. Designed for enabling disabled access or accessibility in a limited space or limited use application.

Max travel: 12m

Load capacity: 250-385kg

A hydraulic vertical platform lift with a cabin and automatic operation

Get ready to experience our newest range of enclosed platform lifts with the exciting Midilift CL cabin lift range. These access lifts are equipped with head-turning aesthetics, energy-efficient performance and a range of sizes and load capacities. Making a bespoke platform lift for you.

The CL is our latest range of cabin platform lifts designed with the benefits of an enclosed platform lift with wheelchair passenger lift features, such as a lift car and automatic controls.

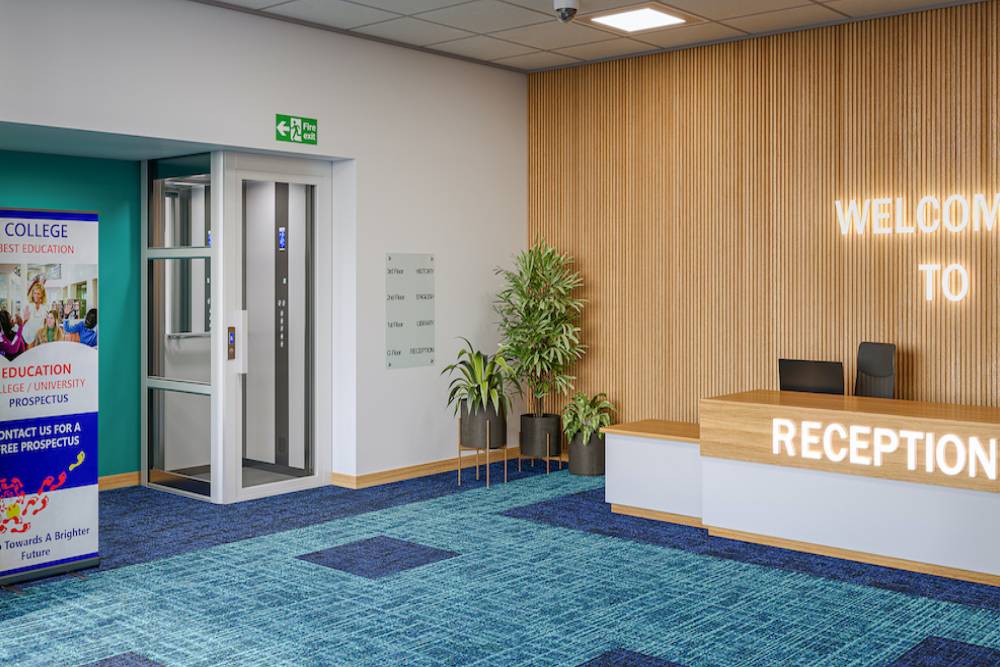

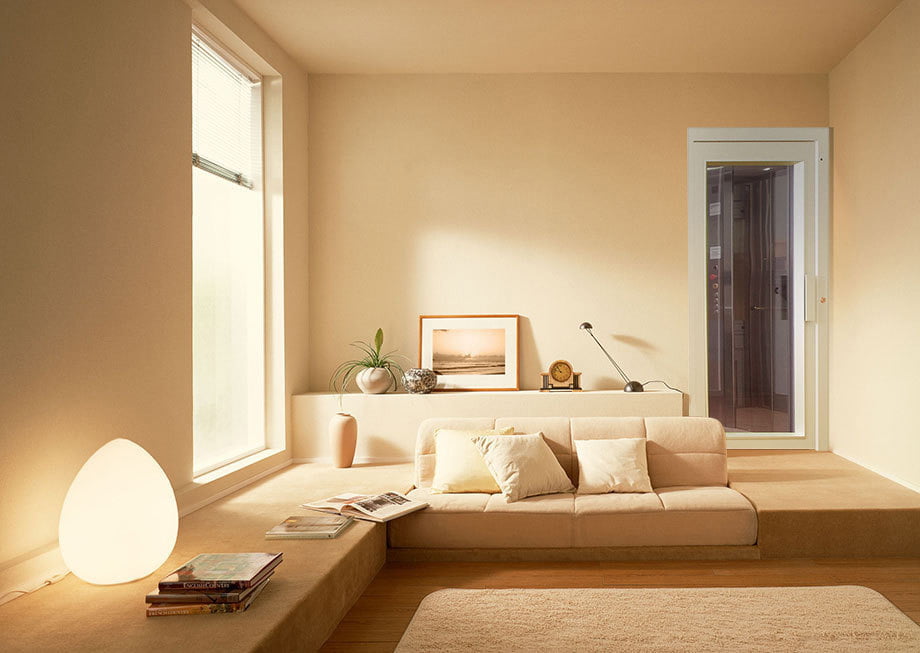

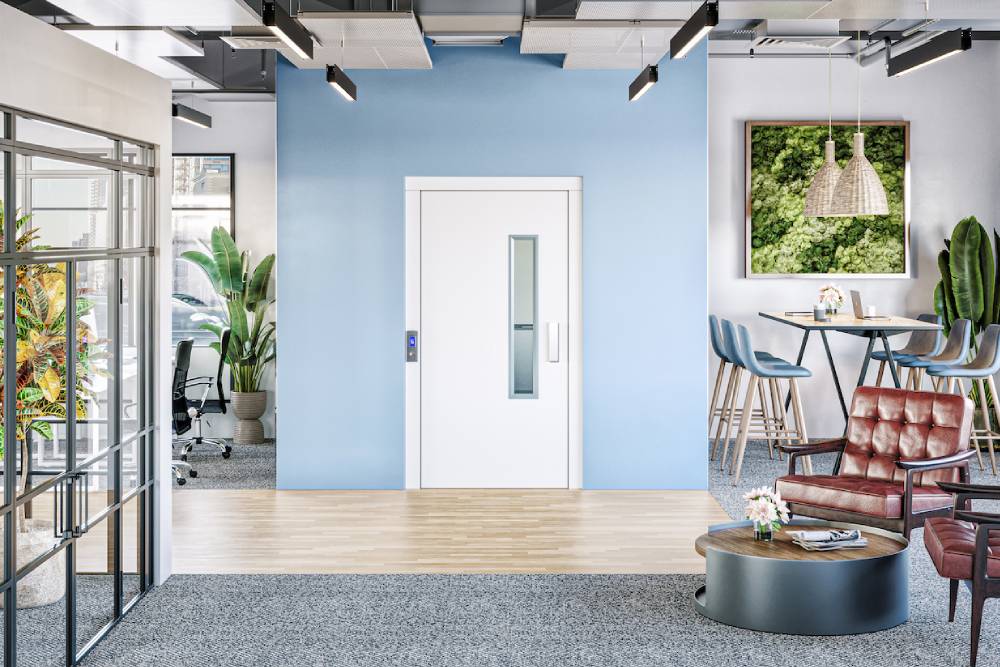

You can use these enclosed vertical platform lifts in a variety of building applications, including public buildings, housing, retail stores, offices and schools. The Midilift CL is a semi-automatic platform lift that offers an affordable solution for applications looking for a bit more than a standard platform lift.

The CL can carry up to 5 users or be used as a wheelchair lift. The cabin platform lift can be placed in its own structure or as a wall-mounted platform lift, with a smooth hydraulic lift system meaning travel up to 12 metres (or 5 stops) in low to medium-rise buildings is a breeze.

It offers compliance with building regulations Part M and the Equality Act whilst making the disabled lifts’ users comfortable with the surroundings.

Plus, with thousands of Stannah hydraulic disabled platform lifts already installed all over Britain, you know you’re getting a superior product supported by the largest network of nationwide lift service branches; you can rely on Stannah as the leading platform lift company.

Features & benefits

usp

Flexible design

The broadest range of cabin lifts yet – indoor/outdoor, structure/wall-mounted and hundreds of car sizes and finishes.

usp

Superb energy performance

Single-phase power supply and energy-efficient motor means low operational and maintenance costs.

usp

Quick & easy installation

A superior wheelchair lift with minimal building work compared to a passenger lift.

Technical specifications

Predominantly moving: People
Speed (m/s): 0.15m/s
Travel orientation: Vertical
Capacity: 250-385kg
No of people/usage: Up to 5 persons
Max no of stops: 7
Entrance configuration: Single, through, adjacent, three sides

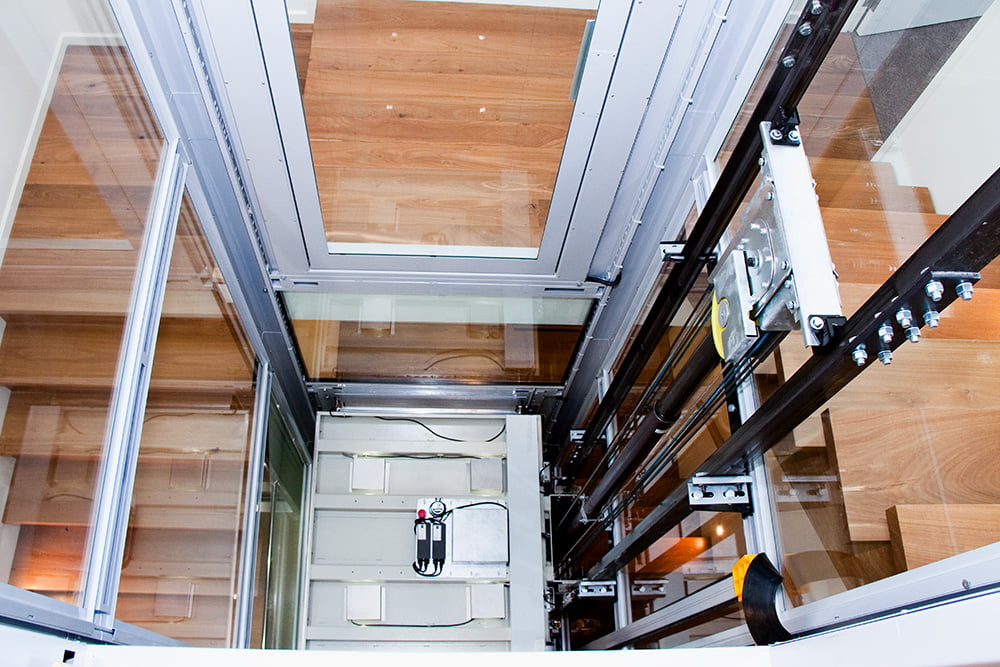

Drive type: Hydraulic drive with remote control cabinet
Operation: Constant pressure / automatic (with car door option).
Pit depth: 100 / 140mm (depending on floor finish)
Ramp option? (Y/N): Yes
Headroom/clearance: Internal car height + 350mm (standard internal car height 2100mm).

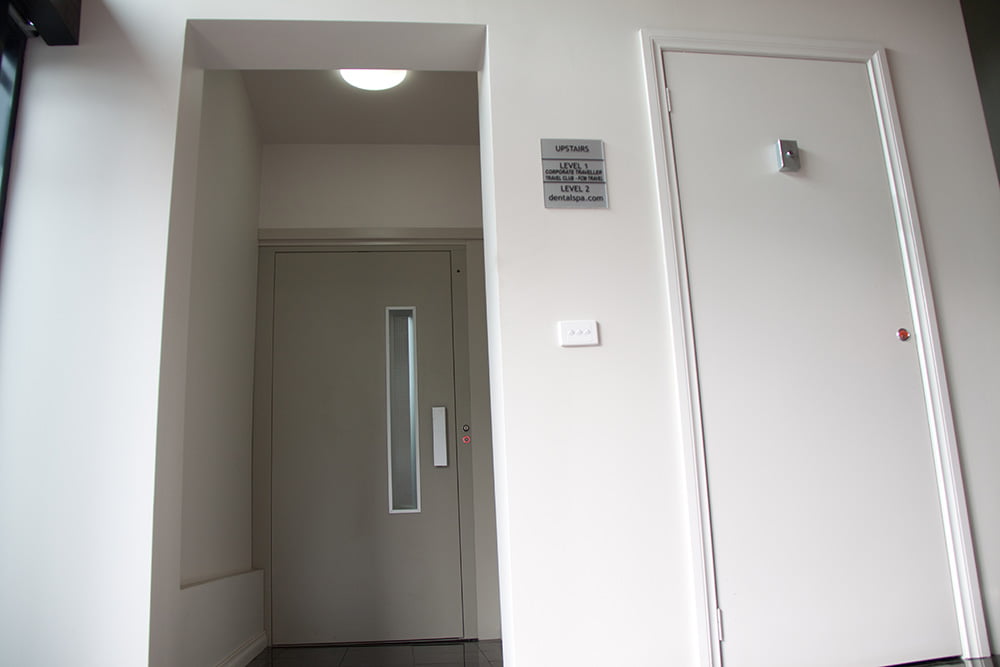

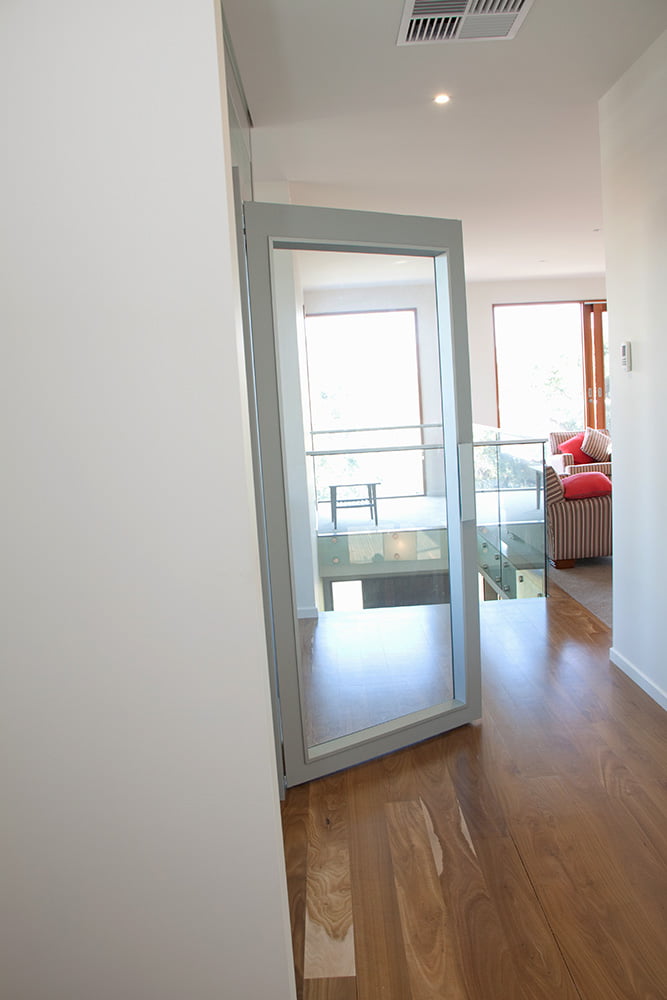

Door type: Full height cabin and landing door

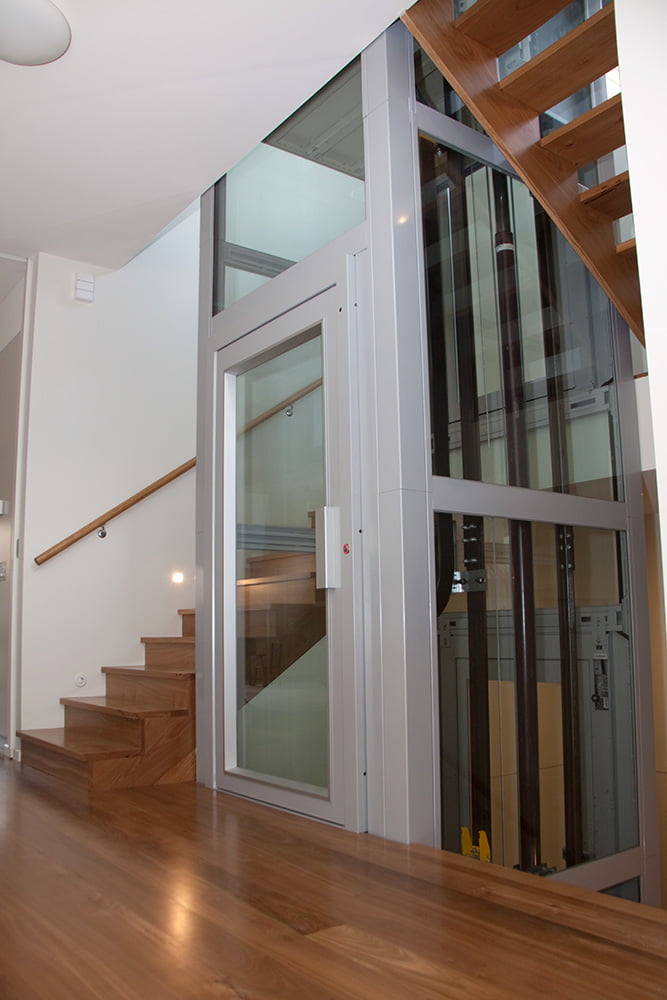

Shaft: Wall mounted, structure-supported
Power requirements: Single-phase
Warranty: 2-year standard warranty, including servicing and 24/7 callout cover
